Product Specs
-
Uplift operator should not be used with products or pockets having a bottom closure without written permission from Draper.
-
An optional light control brush is available.
-
Maximum bundle diameter of 2-3/4" (70 mm).
-
Minimum shade width: 24” (61 cm).
-
Maximum shade width: 8’ (244 cm), depending on fabric weight.
-
Maximum shade height is 60" (152.4 cm) for shades 24" – 26" (60.9 cm – 66 cm) wide.
-
Maximum shade height is 84" (213.4 cm) for shades 26" – 96" (66 cm – 243.8 cm) wide.
-
Square cassette dimensions: 3-7/8” x 3-7/8” (98 mm x 98 mm).
-

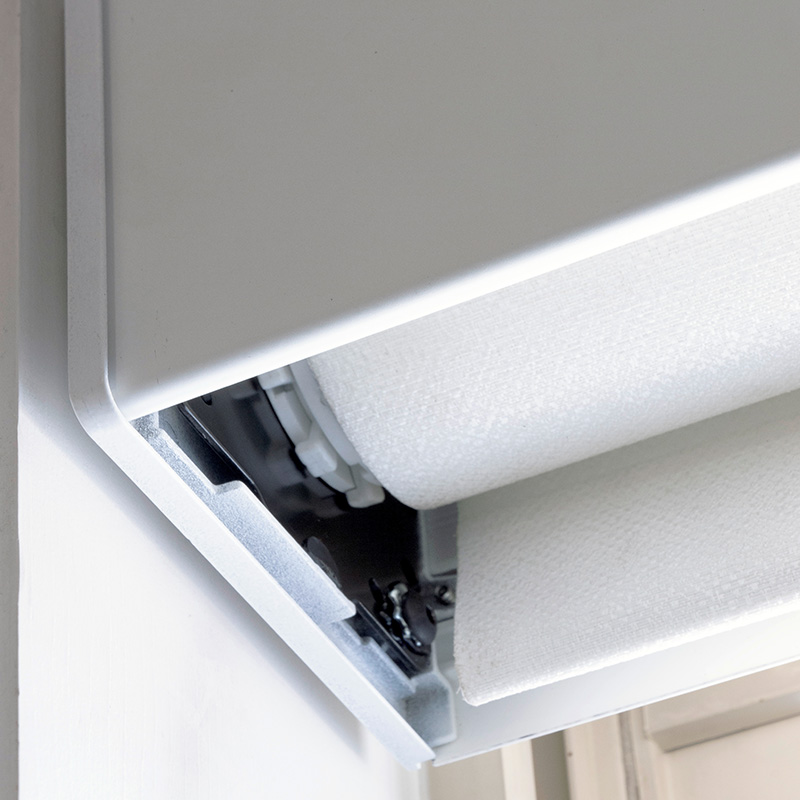

Curved cassette dimensions: 4-3/8” x 3-7/8” (111 mm x 98 mm).
-
Hardware available in black, taupe, grey, white, warm white, and antique bronze.
-
Optional, white Pull-Down Wand available in 36", 48", and 60" lengths (66 cm, 122 cm, and 152 cm).
-
Product can be wall or ceiling mounted for applications requiring installation within or outside the window frame. Contact Draper for details.
-
Choose from a wide range of fabric colors, textures, and opacities—or customize with graphics, patterns, or a custom color match.
-
Product designed for interior use.
ANSI/WCMA A100.1-2022 Child Safety Standard
Effective June 1, 2024, in compliance with the updated ANSI/WCMA A100.1-2022
child safety standard, all Draper window shades operated by a bead chain will be
furnished with a tensioned hold-down device that is permanently attached and
partially disables the product if not installed correctly. This hold-down should
be installed with tension on the chain.
All bead chain operated window shades will include:
- Permanently installed spring-loaded tensioned hold-down device
- Approved permanent warning label attached
- Approved mechanical fasteners for the tension device included. Screws provided are not suitable for all mounting surfaces. The installer is responsible for secure mounting using
appropriate hardware for the site conditions. Consult with contractors and builders as needed.
If the tension device is not installed with appropriate tension on the bead
chain, the shade will be rendered partially inoperable. If installed
properly, the tension device will prevent the creation of a hazardous loop
and
will maintain tension on the bead chain.
Approved permanent warning label
Learn more about the new child safety standard
At the link below, you can see more information about the new child safety
standard, mounting methods for the tensioned hold-down device, alternatives
to bead chain products, and more.
Click here for more information
Tensioned hold-down device
